YOUR SMARTPHONE IS YOUR STUDIO

Your smartphone is an amazing audio production tool. Many apps let you edit, produce, and then upload your audio online in minutes. But how do you get quality audio into your phone in the first place? Now it’s simple! Set the PortCaster on your coffee table, connect a mic and the phone, start your favorite recording app and you’re recording — it’s that easy! Have a particular vocal mic that suits your voice? No problem. PortCaster offers 48V phantom power to accommodate any dynamic or condenser mic. The custom designed Jasmine™ Mic preamps deliver a world-class signal, designed to capture every nuance of the performance. PortCaster is a professional Mobile Recording Interface. It delivers broadcast-level audio quality and is used worldwide by radio stations, professional musicians, podcasters, life streamers and youtubers.

IMPROVE AUDIO QUALITY ON THE GO

This hand-held recording marvel packs a number of features previously available only in high-end studio interfaces, into an ideal form-factor for traveling audio professionals. PortCaster packs two boutique mic preamps with LED level monitoring, 48V phantom power, Dual Independent Limiters, Mono blend, USB blend, and more, into a handheld device the size of a passport! Our exclusive hybrid power system lets you run the unit off the internal rechargeable battery OR from the wall outlet (R4M, R4D models). By transforming your smartphone into a portable recording studio PortCaster creates an end-to-end mobile recording solution for journalists, podcasters, voiceover artists, and videographers — anyone who records on the go.

EASY AND INTUITIVE OPERATION

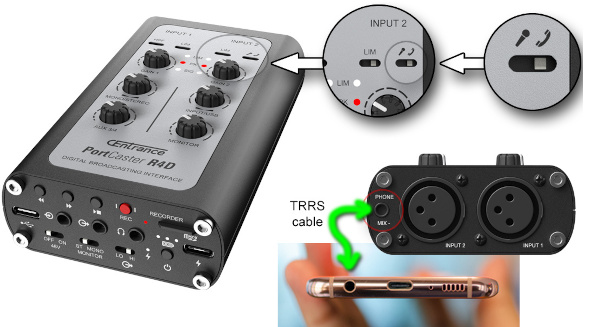

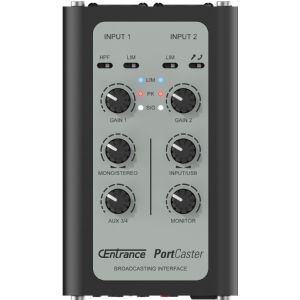

PortCaster has two Neutrik™ input jacks, which accommodate professional microphones and one TRRS input jack for connecting a cell phone. Now you can easily add remote guests to your podcast. Simply dial them up and PortCaster will do the rest. Its analog Mix-minus circuitry will make sure the guest hears the entire podcast with the exception of their own voice. This prevents annyoing feedback from traveling down the phone line and it’s how big radio stations arrange call-in guests. With PortCaster, you can do this too! PortCaster is also a versatile mixer. It has an Auxiliary stereo input that allows you to effortlessly add background music or sound effects to your podcast. PortCaster can connect to a camera via its stereo line output. The top panel gives you easy access to all of the adjustments, using familiar analog pots. No searching through menu pages to find the right adjustment — quick and easy controls are always at your fingertips.

RECORDING

Record to: Android, iOS, Mac, Windows, laptops, phones and tablets
Live stream to most social media platforms and conferencing applications
Supported by most smartphone, tablet and computer recording apps
High Dynamic Range Jasmine Mic Pres™ offer plenty of clean gain
Clean, true 48V phantom power for using professional condenser mics
Two Neutrik™ XLR jacks for mic, line or instrument sources
TRRS input for connecting a phone to add a remote guest to your podcast
High Pass Filter to cut the wind noise when recording on location
MONO Blend control to mix your podcast down to MONO for streaming
Stereo Aux input allows you to add background music or sound effects to your podcast
VelvetSound™ A-to-D converters record your audio in studio quality
DSLR-ready line/mic output for a radical improvement in audio quality

PLAYBACK

Adjustable Zero Latency Monitor control for dialing in the perfect mix
Custom AmpExtreme™ headphone amp offers clarity, detail and volume
Stereo Line output for flexible monitoring and connecting a DSLR camera
Great headphone amp for hearing your podcast and guests loudly and clearly
Works as a mixer for practicing your performance

OVERALL

Gets power from any standard, 5V / 2.4A USB charger. No custom power supply needed.
8-hour Rechargeable battery for longer sessions without interruptions (R4M and R4D models)
Internal battery charges from any standard 5V / 2.4A USB charger
Aircraft-grade aluminum chassis for scratch protection and durability
Optional SD card recorder simultaneously records to SD-card and the phone (R4D model)
SD card, phone and outputs are all fed the same stereo mix for redundancy
Optional pair of XY Stereo microphones offers low noise and flat response

ANALOG SPECS


Phantom power	48 V, 10 mA max per channel
Mic Preamplifier Gain	+0 dB…+65 dB
Mic input impedance	1 kOhm
High Pass Filter	130 Hz, 6 dB/octave roll-off
Freq. Response	20 Hz…20 kHz ±0.5 dB
EIN	-127 dB
THD+N	0.004%
Crosstalk, 1kHz	-95 dB
Aux 3/4 max input level	2.2 V rms / +9.2 dBu, rel 0 dB FS
Line-level output	1.8 V rms / +7.1 dBu, rel 0 dB FS
Output Impedance	1 Ohm (headphone output)
Headphone output power	400 mW (total) at 32 Ohm
Supported Headphones	16…600 Ohm
Gain Switch	46 dB pad (set low to feed DSLR)

DIGITAL SPECS


Resolution, USB	16-bit, 24-bit
Sample Rate, USB	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.2 kHz, 192 kHz
Clocking	Two custom, mil-spec clocks, 10 ppm precision, 1 ps jitter
Compatibility	iPhone, iPad, Android, Mac, Linux, PC. Driver is available for Windows
USB jacks	USB-C type
Micro SD Card	Use Class 10 or better, up to 256GB capacity micro SD card with the R4R model
Recorder specs	Independent of the USB output, internal recorder operates at 24-bit/48kHz
Recorded files	Stereo WAV files

GENERAL SPECS


Mic Preamps	Jasmine™ technology, dual-stage, discrete transistor differential mic preamplifier
Dual Limiters	Dual, independent, photovoltaic limiter/compressors, with soft-knee transfer function
Headphone Amp	AmpExtreme™ technology with bipolar power supply
AC Adapter	Supports standard 5 Volt chargers / adapters with a USB “micro B” cable
DC Charging	+5 V from USB adapter, such as iPad charger. 2 A or more recommended
Analog Supplies	Battery-isolated, triple-filtered ±7 V analog power supply rails
Digital Supplies	Five independent, high-efficiency switch-mode power supplies
Chassis Material	Aircraft-grade aluminum, hard-anodized for scratch resistance, black
Rechargeable Battery	Li-Polymer, 8 hours play/record time (varies with phantom-powered mics)
Unit Dimensions	121 mm (4.76″) (L), 70 mm (2.76″) (W), 36 mm (1.42″) (H)
Unit Weight	R4S: 260 grams (9.1 ounces), R4D: 275 grams (9.7 ounces)
Box Dimensions	161 mm (6.33″) (L), 111 mm (4.37″) (W), 42 mm (1.65″) (H)
Box Weight	455 grams (1 lb)
Included accessories	Quick Start Guide, Velvet carry pouch, Cable for charging or USB audio. Note: Micro SD Card not included.

Specifications subject to change without notice as we continue to improve the product and production process

COMPATIBLE APPS

We have tested these recording apps successfully with PortCaster and they worked well. However, please note that since these apps come from third party vendors, we cannot provide support for them.

Audio Evolution (iOS/Android)
Auria Pro (iOS)
BandLab (iOS/Android)
BeatMaker 3 (iOS)
Cubasis (iOS)
Field Recorder (Android)
FL Studio Mobile (iOS)
Garage Band (iOS)
Luci Live (iOS/Android)
N-Track (iOS/Android)
Tieline Report-IT (iOS/Android)
Twisted Wave (iOS)

These are just the basics. Many more apps are compatible and are simply not listed here. For example: Streaming apps, Gaming apps, Sampling apps, DJ apps, etc. We simply don’t have the time to test them all (although, boy, would we like to!)
