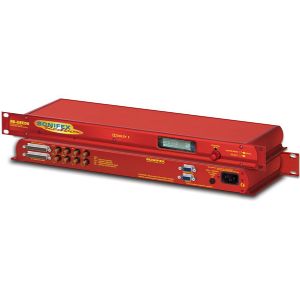

Dolby® E Encoder 8 Channel, Digital Inputs.

Each digital input channel has independent level control, which can be adjusted from -24dB through to +24dB in 0.5dB steps. The digital inputs and outputs can be selected to be either balanced or unbalanced AES/EBU specification, and can be connected through either BNC or D-type connectors. These I/O connections are paralleled, allowing one type to be used per input or output.

Metadata can be input to the encoder using RS-485 via the external 9-pin D-type socket on the rear panel and can also be viewed using the SCi software.

A video input is used to genlock the audio output and Dolby® E encoding to a known video reference. This input autodetects between NTSC, PAL or Tri-level sync.

8 general purposes inputs and 8 outputs are available on a rear panel 25 way D-type socket whose function can be programmed using the menu, e.g. alarm outputs for loss of input or encoder errors.
