  מקלט מקצועי לבקרה ושידור FM Re-Broadcast מבוסס DSP עם יכולות ניהול WEB

מקלט מקצועי לבקרה ושידור FM Re-Broadcast מבוסס DSP עם יכולות ניהול WEB

DEVA

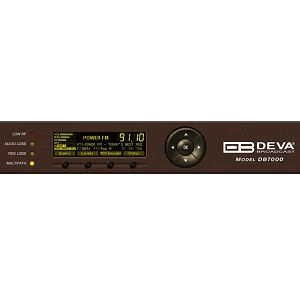

DB7000
DB7000 is a frequency-agile, digitally-tuned FM Re-Broadcast Receiver equipped with a sophisticated and high-selective DSP based FM-tuner

FEATURES:
• Sophisticated DSP based Digital FM Tuner
• Dual antenna ports with built-in RF attenuator
• Up to 100 dBµV direct RF Antenna Input
• Selectable wide range IF filter bandwidths
• FM Band 87.1 - 108.1 MHz Basic Spectrum Analyzer
• Advanced SNMP Ver.2C support
• Fully DSP-based management core
• Wide angle, easy to read OLED display
• Very Intuitive Navigational Menu
• Selectable De-emphasis - Off, 50µs and 75µs
• Built-in high performance Stereo Decoder
• Real Time Audio Program Streaming
• Remote Listening via optional GSM modem
• Easy to use WEB interface
• Apple and Android devices support
• SNTP for automatic sync of the built-in clock
• RDS and RBDS decoder with BER meter
• Alarm dispatch via E-mail, SMS, SNMP and GPO
• Complete status reporting with SMS via optional GSM modem
• Protected access to the device settings
• Balanced Analog Audio Outputs on XLR Connectors
• Professional AES/EBU, SPDIF and Optical Digital audio outputs
• LAN port for full TCP/IP remote control and monitoring
• Adjustable MIN/MAX alarms for RF, Pilot, L & R Audio Levels
• Adjustable MIN/MAX alarms for MPX & RDS
• USB communication interface for local connectivity
• Headphone output with front panel level control
• Easy and intuitive Windows Application
• Firmware updates will ensure improved operation
• Accurate front-panel metering for local use
• Restore Factory Parameters option
• Wide operating voltage range: 100-240V AC
• 19" Professional Case for high RF immunity
• Easy Installation and Setup
