  מיקרופון קונדנסר מזערי

מיקרופון קונדנסר מזערי

SCHOEPS

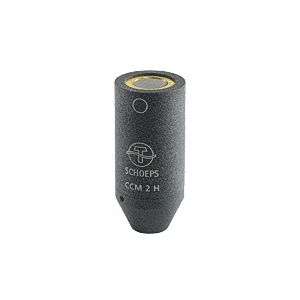

CCM
סדרת CCM מציגה את הצעד הבא במיזעור טכנולוגית המיקרופון, 18 סוגים שונים של מיקרופונים באיכות ללא פשרות. חלקם תוכננו במיוחד עבור יישומי דיבור, דוכן נואמים, הקלטות קול בסרטים, התקנות קבע ועוד

The CCM represents the logical next step in the miniaturization of classic condenser microphone technology without any compromise in quality. The capsules are identical to the corresponding Colette models, while the amplifiers follow the same circuit principles as CMC amplifiers, with low-impedance balanced output circuitry that allows the use of microphone cables up to hundreds of feet long without interference.
The self-noise is as low as that of the Colette System—absolute studio quality.
The capsule and amplifier of the CCM (“Compact Condenser Microphone”) form an inseparable unit in a single housing. The capsules cannot be interchanged as in the Colette modular system.

קפסולות לבחירה:

Omnis

Omnidirectional microphones - if constructed as single-diaphragm transducers, as all our omnidirectional microphones and capsules are - can be considered optimal due to their excellent reproduction of low frequencies and extremely low noise (with SCHOEPS as low as 11 dB(A)). The various types differ in the extent of their high-frequency response elevation, which compensates for the high-frequency losses in the diffuse sound field. Thus we offer both “free field equalized” and “diffuse field equalized” transducers as well as two in-between types.

לרשימת הדגמים המלאה לחץ כאן

Cardioids

The cardioid is the most popular type of directional microphone. It combines the highest level of audio quality with optimal suppression of rear-incident sound. SCHOEPS cardioids have a directional pattern that remains the same at all frequencies.
The range of applications for cardioids is unlimited. They are used for speaking voices as well as for instruments and vocal soloists.

לרשימת הדגמים המלאה לחץ כאן

Wide Cardioids

Schoeps introduced the world’s first wide cardioid microphones and capsules some twenty years ago. This pattern combines the advantages of omnidirectional and cardioid characteristics in an optimal manner. To an extraordinary extent the directionality is independent of frequency, which means that regardless of its direction of origin, sound will be picked up free of unwanted coloration.
The wide cardioid is very well liked as a musical instrument microphone. Its sound quality, compared with that of a cardioid, is “warmer” and more “open.”

לרשימת הדגמים המלאה לחץ כאן

Open Cardioid

Compact Microphone CCM 22

new kind of directional pattern: “Open Cardioid”
optimal combination of classic cardioid directionality (MK 4) with the sonic character of the wide cardioid (MK 21)
directional pattern largely constant throughout the frequency range
often preferred for spot miking and as a soloist’s microphone

Supercardioids

The supercardioid has the greatest directional effect of any first-order pressure gradient transducer. The response 90° off-axis is -10 dB. The polar diagram is consistent at all frequencies, which means that regardless of its direction of origin, sound will be picked up free of unwanted coloration. For this reason the supercardioid is the preferred type of microphone for dialog recording in film and video sound, particularly indoors.
From low to midrange frequencies, the directionality of a supercardioid is comparable to that of a “shotgun” microphone.

לרשימת הדגמים המלאה לחץ כאן

Figure-eight

Compact Microphone CCM 8

pure pressure-gradient transducer
figure-8 pattern with near-ideal consistency across the frequency range
side-addressed (pickup perpendicular to the microphone body)
optimal for use in M/S and Blumlein stereo recording

Switchable

Compact Microphone CCM 5

omni and cardioid patterns, mechanically switchable
slight emphasis of the high frequencies
broad range of applications
preferred uses similar to those of the MK 2 or MK 2S and the MK 4: In the cardioid setting: for use with singing or speaking voices or most instruments, as a spot microphone, and for stereo recording with coincident, ORTF or M/S microphone arrangements

Special Microphones



SCHOEPS offers special directional microphones and capsules for speech applications. Their marked reduction in low-frequency response compensates for proximity effect and helps to suppress both "popping" and ambient noise.

These microphones are designed for close placement - 20 cm or less, for example - when the primary concern is for the intelligibility of the spoken word. They are often used in fixed installations, or in conjunction with the SCHOEPS HS 4VXS headset.

לרשימת הדגמים המלאה לחץ כאן

Boundary-Layer Microphone For Fixed Installations BL CCM 3

hemispherical pickup pattern
for building in to the surface of a table or lectern
unobtrusive
avoids “comb filter” effect

ניתן לרכוש ממגוון מעמדי ומתקני המיקרופון היעודיים

ניתן להתרשם מדגימות הקול בשלל מצבי הקלטה בטכניקות הקלטה שונות

באמצעות אולם התצוגה האינטרנטי החדש המציג את מגוון מיקרופוני Schoeps במצבי הקלטה שונים.






קישור לאתר החברה

קטלוג מוצר
צור קשר לקבלת הצעת מחיר
