  ממיר קצב דגימה בפורמט דיגיטלי MADI

ממיר קצב דגימה בפורמט דיגיטלי MADI

DirectOut

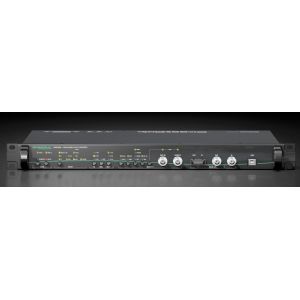

MADI.SRC
תומך 44.1kHz עד 192kHz, יכולת המרה בזמן אמת באיכות צליל גבוהה ביותר.(1x optical SC / 1x coaxial BNC) מגיע גם רק עם חיבור אופטי.

D.O.TEC® MADI.SRC offers best quality sample rate conversion of a complete MADI stream (64 audio channels) in realtime. The device supports any source and destination sample rates from 30 kHz to 50 kHz and their multiples (48k/96 kFrame, 56/64 channels). High end chips with a THD+N > 140dB and a frequency response linearity better than 0.025 dB guarantee excellent sound quality.



Inputs and outputs are layed out with both optical (SC multi-mode) and coaxial (BNC) connectors and work in parallel. Thus both outputs carry the converted input signal and can be distributed twice. If required the signal format can be converted from/to optical/coaxial by using the SPLIT.CONVERTER.

The MADI.SRC can be used whereever sample rate conversion with highest sound quality is requested. The stream is processed in realtime and all channels provided at the output will be phase and sample accurate to each other.

•Optical SC fibre optic input and output
•Coaxial BNC input and output
•MADI connections between asynchronous MADI ports or systems
•Intelligent conversion between standard (48 kHz), double (96 kHz) and quad (192 kHz) sample rates
•Conversion to and from 64-channel and 56-channel with varispeed formats
•Output sync to Word clock, video or MADI
•Dual redundant power supplies



ניתן לשליטה מרחוק באמצעות Globcon
