  מקלט מקצועי לבקרה ושידור FM Re-Broadcast עם יכולות שידור על גבי IP ונגן MP3 לגיבוי

מקלט מקצועי לבקרה ושידור FM Re-Broadcast עם יכולות שידור על גבי IP ונגן MP3 לגיבוי

DEVA

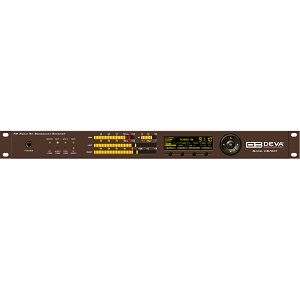

DB7007
DB7007 is a second generation digitally-tuned FM Re-Broadcast Receiver. Considering the needs of the most demanding broadcasters and continuously supplementing new features to our devices, DEVA has enhanced DB7007 to be smarter and fully functional unit, equipped with two high-selective DSP-based FM tuners.

Thanks to the built-in monitoring system, upon audio loss at the inputs, DB7007 will not only notify the maintenance staff, but will also automatically switch to the second back-up RF Station. In case a fail of the second station is detected, DB7007 will shift to the incorporated IP Stream, MP3/AAC back-up audio source player. It is essential that the back-up sources priority is user-defined. The IF bandwidth filters guarantees unprecedented signal selectivity, while the difficult adjacent-channel problem will be completely solved.

DB7007 is designed by broadcasters for broadcasters to serve you solve the most critical re-broadcast scenarios.


Two independent DSP based Digital FM Tuners
Dual antenna ports with built-in RF attenuator
Up to 100 dBµV direct RF Antenna Input
Selectable wide range IF filter bandwidths
FM Band 87.1 - 108.1 MHz Basic Spectrum Analyzer
Built-in DSP based Stereo Re-encoder
Advanced SNMP Ver.2C support
Professional AES/EBU, SPDIF and Optical Digital audio outputs
Wide angle, easy to read OLED display
Very Intuitive Navigational Menu
Selectable De-emphasis - Off, 50µs and 75µs
Real Time Audio Program Streaming
Remote Listening via optional GSM modem
Apple and Android devices support
SNTP for automatic sync of the built-in clock
RDS and RBDS decoder with BER meter
TCP/IP Remote monitoring and control via SNMP and WEB Interface
Alarm dispatch via E-mail, SMS, SNMP and GPO
Multiformat Backup IP Audio player (three separate sources)
Built-in Backup MP3 Player
Lots of Storage for over 24 hours of non-repeating audio playback
Adjustable MIN/MAX alarms for RF, Pilot, L & R Audio Levels
Adjustable MIN/MAX alarms for MPX & RDS
Digital Volume Control of all Audio Sources
Complete status reporting with SMS via optional GSM modem
Protected access to the device settings
Balanced Analog Audio Outputs on XLR Connectors
USB communication interface for local connectivity
Headphone output with front panel level control
Easy and intuitive Windows Application
Firmware updates will ensure improved operation
Accurate front-panel metering for local use
Restore Factory Parameters option
Wide operating voltage range: 100-240V AC
19" Professional Case for high RF immunity
Easy Installation and Setup
