Barix

barionet 50

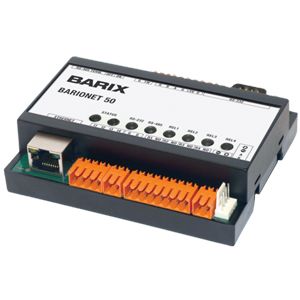

Programmable I/O device server with 2 serial ports, 8 digital I/O and Dallas 1-wire support, SNMP, Modbus/TCP and web interfaces via builtin 10/100 Ethernet interface. The Barionet 50 is a fully programmable I/O device server that supports standard interfaces such as SNMP, CGI, HTTP, and Modbus/TCP to monitor and control a variety of built-in I/O functions. Four contact closure inputs, four relay outputs, a 1-wire interface and two serial ports can be monitored and controlled via several built-in protocols. In additoin, all I/O functions and interfaces can be controlled and monitored using custom DHTML web pages and BCL (Barix Control Language) applications loaded into the device.

The Barionet 50 is a low cost, flexible and multiprotocol capable I/O device server which bridges the real world of sensors and actors with IP Automation and IT management systems. Speaking both SNMP and Modbus/TCP as well as universal ASCII protocols, the Barionet devices are easily integrated into monitoring and management systems.

Applications
• Temperature monitoring, logging and HVAC control
• Contact closure monitoring
• PV power management

FEATURES
•Relay Output (4x24V)
•Contact Closure Input (4)
•RS-232 Serial Port (1)
•RS-485 Serial Port (1)
•Supply Voltage (9-30V)

Designed in Switzerland and installed in thousands of locations internationally, the Barionet has poven itself as a very reliable, versatile product solving interfacing, data collection and control problems effectively, world wide.
