Barix

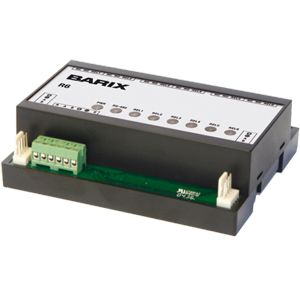

Modbus remote I/O module with serial RS-485 Modbus/RTU interface, and 6 high current relays (230VAC,16A), UL listed, DIN Rail mountable The Barix R6 is a UL-listed Modbus I/O module with a serial RS-485 Modbus/RTU interface. Six high-current relays, capable of switching up to 16 amps at 230VAC allow switching of line voltage devices. The R6 can be used as a general-purpose Modbus I/O module or it can be interfaced to the Barionet using the Barionet’s built-in RS-485 interface and BCL code to implement the Modbus/ RTU message protocol

The Barix R6 is a universal, low cost, small form factor I/O extension device which connects to a host via Modbus/RTU. The six 250V/16A rated relays are controlled using Modbus/RTU commands via the serial interface Special power savings features keep the active power of the device low even if all relays are activated.

Applications
• Voice Evacuation Systems with 6 Relays

FEATURES
•Relay Output (6)
•RS-485 Serial Port (1)
•Supply Voltage (9-30V)

Designed in Switzerland and installed in thousands of locations internationally, the Barix control products have poven themselves as a very reliable, versatile product solving interfacing, data collection and control problems effectively, world wide.
