יחידות הרחבה 12 IN\OUT ל-BARIONET

Barix

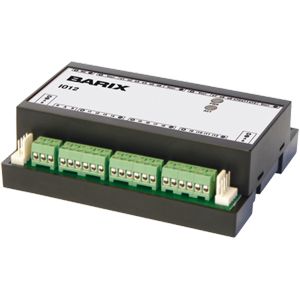

IO12

Modbus remote I/O module with RS485 Modbus/ RTU interface, 12 current sourcing outputs and 12 optically-isolated inputs. The Barix IO12 is a Modbus digital I/O module with a standard RS-485 Modbus/RTU interface. It provides 12 current sourcing outputs and 12 optically- isolated inputs that can be addressed using standard Modbus/RTU commands. The IO12 can be used as a general-purpose Modbus I/O device or it can be interfaced to the Barionet using the Barionet’s built-in RS-485 interface and BCL code to implement the Modbus/RTU message protocol.

The Barix IO12 is a universal, DIN Rail mountable industrial I/O extension which connects to a host via Modbus/RTU. The inputs/outputs are controlled and read using Modbus/RTU commands via the serial interface Special power savings features keep the active power of the device low even if all relays are activated.

Applications
• Voice Evacuation Systems, 12 in, 12 out

FEATURES
•RS-485 Serial Port (1)
•Supply Voltage (9-30V)
•Current sourcing Outputs (12)
•Optoisolated Inputs (12)

Designed in Switzerland and installed in thousands of locations internationally, the Barix control products have poven themselves as a very reliable, versatile product solving interfacing, data collection and control problems effectively, world wide.

קישור לאתר החברה

מדריך למשתמש

מחיר קטלוגי: 1129 ₪ (1321 ₪ כולל מע"מ)

צור קשר לקבלת הצעת מחיר
