  מכשיר הקלטה נייד בחיבור XLR למיקרופון

מכשיר הקלטה נייד בחיבור XLR למיקרופון

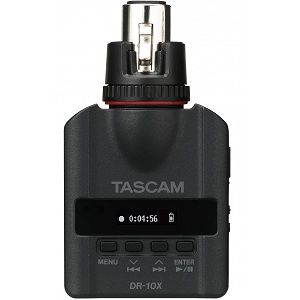

TASCAM

DR-10X

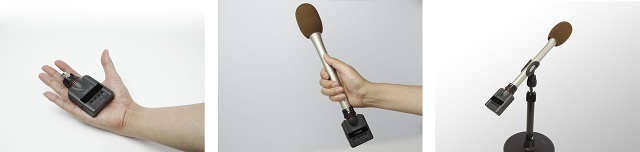

התקן הקלטה קומפקטי נייד המתחבר ישירות למיקרופון דינמי ידני ייעודי ל ENG ומאפשר הקלטה באיכות 24bit/48kHz. הקלטה בפורמט WAV ללא כל דחיסה לאיכות הקלטה מקסימלית. ההקלטה מתבצעת על גבי כרטיס microUSB. DR-10X קיימים 2 הגדרות הקלטה, ידנית או אוטומטיות, עם מסנן לחיתוך תדרים נמוכים Low Cut Filter, ולימיטר Limiter להגבלה של עוצמאת הכניסה. אפשרות למצב הקלטה כפול להקלטה נוספת בעוצמה נמוכה לגיבוי, במקרה שההקלטה המקורית הוקלטה בעוצמה חזקה מדיי. ממשק הפעלה פשוט לשימוש.


:Features

XLR plug-on connection
Compatible with dynamic mics as well as bettery-powered condenser mics
48kHz/24-bit linear PCM mono recording
WAV files (compatible with BWF format)
Media: microSD/SDHC cards (supports 32GB capacities)
Sliding record switch and hold function to prevent misoperation during recording
Dual recording function
automatic file closing function to prevent the loss of already recorded data
XLR connector also can use as external input for external input
High/Mid/Low recording level settings
Low-cut filter
Limiter
Automatic level function
With a built-in clock function, supports BWF files that can have time information added, which is convenient for editing and searching
Time track incrementing function can create new files at regular intervals (about every 15 minutes) during recording
Playback function allows recorded data to be checked immediately
Headphone output
Locking mechanism assure a tight connection with the microphone body
Easy-to-read organic EL display
micro USB B port enables easy data exchange with computers
Records at least 10 hours on a single AAA battery by using alkaline batteries (EVOLTA)
Unit settings can be created and transferred as a computer text file
Settings can be transferred between multiple DR-10X units using the infrared transmission function
Firmware can be updated using a microSD card
RoHS-compliant product
