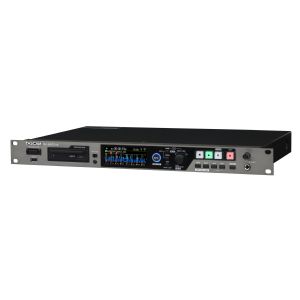

מכשיר הקלטה דיגיטלי 64 ערוצים

• Supports recording/playback of 64 channels at 48kHz/24-bit or 32 channels at 96kHz/24-bit PCM
• The perfect backup recording system for synchronized capture with Pro Tools systems
• 2.5-inch SSD recording media with excellent vibration and environmental resistance as well as maintenance-free operation. (Note: HDD support currently under development)
• Includes TASCAM SSD – designed with custom controller parts and thoroughly tested using DA-6400 units
• Hot swappable AK-CC25 case loads into front-loaded storage bay with USB 3 I/O port for transfer to DAW computer
• AK-CC25 with TASCAM 240GB SSD drive included with unit
• Hi-visibility Color LCD  (320×120 pixels)
• BWF support for storing time information with files
• Two I/O slots for optional audio interface cards:
  • IF-MA64/EX 64-channel redundant (in/out/thru) MADI optical/coaxial interface card
  • IF-MA64/BN 64-channel MADI coaxial interface card
  • IF-DA64 64-channel Dante interface card
  • IF-AE16 16-channel AES/EBU interface card
• SMPTE LTC timecode input and output for location synchronization
• Firmware upload over USB port
• Parallel remote control input
• RS-422 serial remote control (9-pin serial protocol compliant)
• Gigabit LAN (1000BASE-T Ethernet) for file transfer, remote control and monitoring over a network
• SNTP server support for automatic adjustment of the internal clock over a network
• Video reference (NTSC/PAL blackburst signals and HDTV Tri-level signals) and word clock input and output/thru
• EIA 1U rackmount size
• IEC 3-pin inlet
• iPad and computer applications for remote control
• AC power redundancy built in (DA-6400dp only)

TASCAM SSD features

• 240GB 2.5-inch serial ATA SSD
• With cooperation with parts manufacturers, TASCAM uses a specific control IC for stable, reliable operation
• SSD operation has been tested with the DA-6400
• One included with each DA-6400/DA-6400dp; additional drives can be purchased separately
• Total recording time: 7h12m@48kHz/24-bits, 64 channels

AK-CC25 (DA-6400 series SSD storage case) features

• 2.5-inch serial ATA SSD can be installed (Note: HDD support currently under development)
• USB 3.0 interface supports high-speed data transfer
• Data transfer possible when loaded in a DA-6400 bay and when connected by USB to a computer as an external drive
• LED disk access indicator
• One included with each DA-6400/DA-6400dp; additional cases can be purchased separately
