  ממיר אודיו אנלוגי\דיגיטלי MADI

ממיר אודיו אנלוגי\דיגיטלי MADI

DirectOut

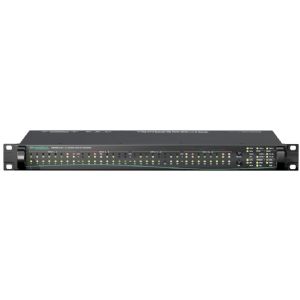

ANDIAMO 2.AD/DA
ממיר אודיו 32 ערוצים מאנלוג לפורמט MADI דיגיטלי או מ-MADI לאנלוג







ANDIAMO 2.AD and ANDIAMO 2.DA are part of the ANDIAMO family of powerful, high-end AD/DA MADI converters. This unit provides unidirectional conversion of 32 audio channels from analog to digital (or digital to analog) with extremely high sonic quality. Housed in an elegant, space-saving 1U 19” casing, up to two units may be cascaded for 64 channels of conversion.

2.AD: Bank selection allows the choice of audio channels 1-32 or 33-64 from a MADI stream to be converted. Converter sensitivity can be switched between two levels (hi/lo).

2.DA: Bank selection allows the choice of audio channels 1-32 or 33-64 from a MADI stream to be converted. Converter sensitivity can be switched between two levels (hi/lo).

The device may be operated locally or remotely via the ANDIAMO Remote software. Supported remote methods are USB, D.O.NET, ‘MIDI over MADI’ and ‘Serial over MADI’.

ANDIAMO Remote (Windows® / OS X®) offers access to the following features (and many more):

  • Matrix Mode which offers free signal routing on a per-channel basis.
  • 4 FS support – the device supports sample rates from 44.1 kHz up to 192 kHz to meet the highest sonic demands
  • Level control – output gain/level trim for individual channels
  • AD calibration in 0.1 dB increments for precise adjustment of AD converter reference levels

The settings and the routing matrix are stored inside the device.

PORT REDUNDANCY

ANDIAMO 2.AD and 2.DA are equipped with two MADI ports as standard, offering seamless port redundancy and switchover. Both MADI ports are always active and carry the same MADI data, except when the Extended Routing feature is deployed.

EXTENDED ROUTING

The Extended Routing feature enables both MADI I/Os to be used independently to:

  • make full use of all conversion channels at higher sample rates (192 kHz)
  • double the range of available MADI input channels
  • create two individual MADI feeds

QUICK OVERVIEW

The front panel provides level control and status LEDs for real-time monitoring of signal condition for all input and output channels.

CLOCKING

Selectable clock sources are word clock, MADI input or the internal clock. The current system clock is provided at the word clock output at any time.

ADAPTABLE

The device may be configured to order as follows:

  • Version "A": +06 dBu / +15 dBu
  • Version "B": +09 dBu / +18 dBu
  • Version "C": +15 dBu / +24 dBu

SAFE OPERATION

Thanks to two phase-redundant power supplies with separate IEC inlets and AC power switches on the rear panel the device offers the highest reliability.

 EOL

המוצר הוחלף לדגם חדש  Andiamo
