מקליטים דיגיטליים ניידים

SD/SDHC/SDXC cards used for recording media.
6 maximum simultaneous recording tracks
MONO, STEREO, 2MIX, DUAL MONO, DUAL ST and DUAL2MIX recording modes
Recording formats: 16/24-bit, 44.1/48/96/192kHz (WAV/BWF) (192kHz only for two-track recording)
Built-in original TASCAM HDDA mic preamps provide high audio quality
Input levels can be adjusted separately for each track
XLR/TRS inputs support +4dBu line level and 24/48V phantom power
Clock and record start/stop can be synchronized with a camera using the HDMI port
DR-701D audio signal can be output to an external camera or recorder from the HDMI OUT or line output
Cascade function using HDMI connections allows multiple DR-701D transport and monitoring operations
SMPTE Timecode can be input through the TC IN connector to add recording start times to files
Timecode generator (RTC) allows recording start times to be added to files even when there is no timecode input
Plug-in power mics and high output mics (EXT IN 1/2) supported
DR-701D OUT (CAMERA OUT) connector can output audio mixed by the DR-701D to a DSLR camera
DR-701D IN (CAMERA IN) connector enables monitoring the sound from a DSLR camera through the DR-701D
High quality audio output through a line output jack separate from the headphones jack
Headphones jack with 50mW+50mW maximum output
Tripod attachment threads (bottom), camera screw attachment that can be installed or removed with a coin (top) and shoe mount (top) included
Handles on the left and right sides of the front protect the control surface and also enable attachment of a shoulder strap
Transport and SLATE buttons made of rubber suppress noise during operation
HOLD switch prevents misoperation
128×64-dot graphic LCD with backlight
LED lights have high visibility even in direct sunlight
High-speed transfer of files to computers possible using USB 2.0
Micro-B type USB cable included
Powered by 4 AA batteries, USB bus power or a PS-P515U AC adapter (sold separately)
BP-6AA external battery pack (sold separately) enables operation for even longer times
Optional RC-3F foot switch and RC-10 wireless remote control can be connected (both sold separately)
Built-in mixer enables pan and level adjustments as well as solo monitoring and can output a mix of 4 channels
GANG function allows the levels of multiple channels to be controlled simultaneously
Individual channel trim settings shown
5-position low-cut filter (50/80/120/180/220 Hz) cuts unwanted low frequencies
Multiband limiter automatically adjusts input overloads (stereo-linking possible with 1/L and 2/R)
Delay function can compensate for distances between mics (+/-150 ms)
Mid-side decoder function enables use with mid-side stereo mics
Slate tone insertion functions (AUTO/MANUAL)
Slate tone insertion points can be selected (recording start or recording start and stop when slate AUTO function used)
New function of V 2.00
Support Ambisonics recording in A format/ B format
Stereo mix of B format for input monitoring and playback through headphone out and line output
Support AmbiX and FuMa for B format recording
Support input monitoring and line output with stereo mix of B format source
GANG function for precise control of 4 channels at once
Selectable mic positioning allows flexible setting of Ambisonic mic (Upright/ Upside Down/ End Fire)

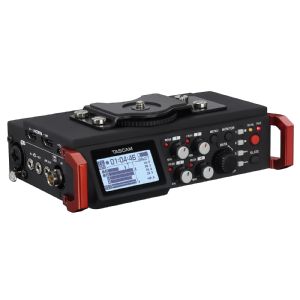

מקליט אודיו מקצועי ייעודי ל-DSLR

TASCAM
