Key Workflow: Linear PCM multichannel stereo sound card for professional audio workstations

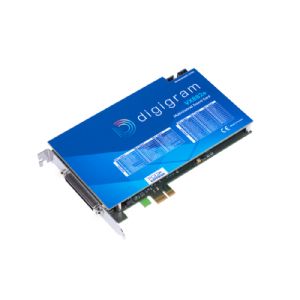

VX882e is a professional linear (PCM) multichannel sound card based on the PCI Express bus interface. It is designed for use in any professional system running under Windows or Linux. It is a reference card in radio broadcast automation for applications such as automated recording and play-out and multichannel production.

At a glance

VX882e features  eight input and output channels and offers balanced analog and AES/EBU connectivity, with the possibility to synchronize on an external clock (AES11, Word clock, black burst video).  It can be used under Windows or Linux operating systems, with software applications based on standard driver interfaces such as WDM Kernel streaming, DirectSound,  Wasapi, and ASIO for Windows, and Alsa for Linux.

• Developed for the broadcast industry
• Supports balanced analog and AES/EBU audio
• Interoperable with most third party software applications for audio production, under Windows and Linux

Key features

• Multichannel linear PCM sound card
• PCI Express bus interface
• Eight balanced analog inputs and outputs, +24 dBu max level
• Four AES/EBU inputs/outputs, with hardware sample rate converter on each AES/EBU input
• Adjustable input and output analog and digital gains
• On-board 3-band parametric EQ and Maximizer effects
• Support for Linux (Alsa driver) and Windows 32-bit and 64-bit (WDM Kernel streaming, DirectSound, Wasapi, ASIO)
• Breakout cable or breakout box (BOB8)  with XLR connectors for audio connectivity
