מצלמות PTZ HD

Marshall

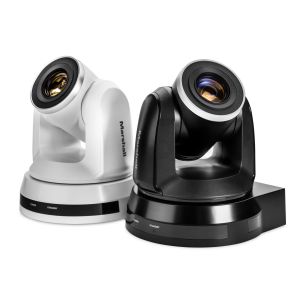

CV-620 IP

מצלמת PTZ באיכות HD בפרוטוקלים: HDMI, 3G-SDI ו- IP

2 Megapixel 1/2.8-inch Sensor
Full-HD: 1920x1080i, 1920x1080p, 1280x720p
High Speed: 60, 59.94, 50, 30, 29.97, 25 fps
20X Optical Zoom 4.7~94mm (F1.6~3.5) with 12x Digital
Wide Pan-Tilt Range: 340 degree Horizontal Pan - 120 degree Vertical Tilt
Quiet, smooth, stable, synchronous PAN-TILT-ZOOM motor allows for quality transitions
TRS Audio Line/Mic level select (2.5V to mic)
IP (H.264), 3G/HD-SDI and HDMI simultaneous outputs
RS422/RS232 Remote Control Interface at High Comm Speeds
Mountable via table, wall or ceiling. Ceiling mount included in box; wall mounts CV6XX-WM (Black) or CV6XX-WMW (White) sold separately.
Compatible with integrated video conferencing systems
(1) Ethernet (Cat) connection allows for H.264 video, PoE+ (power), and Control over one Cat cable.

CV620-IP specifications
Sensor	1/2.8" 2MP CMOS
Video Output	1920 x 1080p @ 60, 59.94, 50, 30, 29.97, 25fps 1920 x 1080i @ 60, 59.94, 50fps 1280 x 720p @ 60, 59.94, 50fps
Optical Zoom	20x
Panning Angle	-170° ~ +170°
Tilting Angle	-30° ~ +90°
Preset Positions	128
Video Output (HD) Interface	HDMI, 3G-SDI, Ethernet
Network Interface	ONVIF / RTSP Streaming / RTMP Streaming
PoE+	802.3at
Camera Control Interface/Protocol	RS-232 / RS-422 / Ethernet
Video S/N Ratio	> 50dB
Shutter Speed	1/1 ~ 1/10,000 sec
Focal Length	f = 4.7 ~ 94 mm
3DNR	Yes
Horizontal Viewing Angle	63°
Aperture	F1.6 ~ F3.5
Minimum Illumination	1.0 lux (F1.6, 50IRE, 30fps)
Minimum Object Distance	300mm (Wide) ~ 1500mm (Tele)
Gain Control	Auto, Manual
White Balance	Auto, Indoor, Outdoor, One-Push, Manual
Exposure Control	Auto, Manual
Focus System	Auto, Manual
Image Flip	Yes
Video Compression	MJPEG, H.264 / SVC
Weight	2 kg (4.4 lbs)
