  בקר למצלמות PTZ על גבי רשת

בקר למצלמות PTZ על גבי רשת

Minrray

KBD2000
בקר שליטה מבוסס רשת למצלמות PTZ

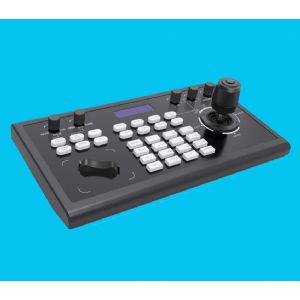

KBD2000, a network(IP Based) PTZ camera controller, is fully compatible with many PTZ camera coding protocols from the main manufacturers in the market, supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc. This compact camera controller features a high-quality joystick that allows variable speed control, as well as fast camera switching, quick-set camera parameters and so on. The industrial-grade blue screen LCD module has excellent display effect with fine and clear characters.

Key Features:
  • Supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc.
  • RJ45, RS422, RS232 control interfaces; Control up to 255 Cameras.
  • Unique control code learning function allows customers to modify the control code instructions
  • Any device on the RS485 bus can be individually configured with different protocols and baud rates.
  • All camera parameters can be set through the button operation.
  • Metal shell, silicone key design.
  • LCD display, keypad sound prompt, real-time display decoder and matrix working status.
  • 4D joystick allows variable speed control to cameras
  • Maximum communication distance: 1200M(0.5MM Twisted-Pair Cable)


קישור לאתר החברה

עלון המוצר
צור קשר לקבלת הצעת מחיר
