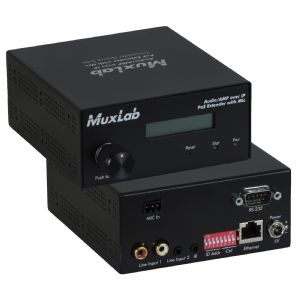

  מגבר כריזה על גבי רשת LAN

מגבר כריזה על גבי רשת LAN

MuxLab

500755-AMP
מגבר כריזה המאפשר לשדר עד שני ערוצים על גבי רשת תקשורת סטנדרטית (LAN)


The Audio/AMP over IP with Mic & AMP 50W/CH includes a Transmitter (500755-AMP-TX) and a Receiver (500755-AMP-RX) that allow a one of two 2CH analog audio-in and Mic-in signals to be extended over an IP network, and up to 330ft (100m) from an Ethernet Switch via Cat5e/6 cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint is supported by connecting several Transmitters and Receivers to the same local Ethernet network. Depending on the application one or more Transmitters (500755-AMP-TX) can communicate with (or multicast to) multiple Receivers (500755-AMP-RX).The Transmitter supports PoE (PD) if used with a PoE (PSE) Ethernet Switch. Supports bidirectional RS232 and directional IR transmission initiated via an IP network or via pass-through for remote control of end devices.

FEATURES
  • Supports dual 2CH audio inputs and a Mic input (TX)
  • Extend 2CH Audio or Mic signals up to 330ft (100m) over Cat5e/6 cable
  • Supports a 2x50W Amplifier, and bridge-mode for 1x100W (RX)
  • Supports Digital Audio Out (RX)
  • Control input selection, volume, bass and treble (TX)
  • Manage TX locally via push/turn dial or remotely via 500811 Pro Digital Network Controller web interface
  • Compatible with 500755-70V for 70V speaker systems

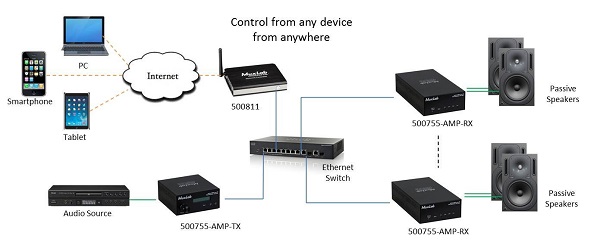

  • Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
  • Supports 100’s of Transceivers depending on network bandwidth
  • Supports RS232 and IR transmission for remote control of end devices
  • Transmitter may be PoE powered
