DVB

DVEO

T-Ramp

מקלט-מפענח לשידורי DVB-T, DVB-T2, לסטרים IP-TV - לפורמטים SDI, HD-SDI, ASI, HDMI קומפוננט וקומפוסיט

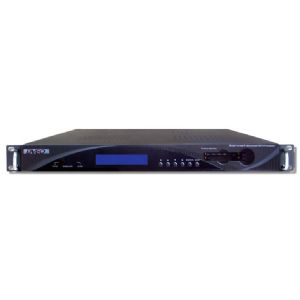

Real Time, Hardware Based, 1 RU, Local or Remotely Manageable Multi Resolution, SD and HD, 4:2:0, H.264 and MPEG-2 Decoder with IP, DVB-S/S2, or Looped ASI Input. Set Up via LCD Front Panel or via Browser. Output is SDI (SMPTE 259M), HD-SDI (SMPTE 292M), ASI, Component, HDMI, or Composite. Audio Output Includes Embedded AAC, AC-3, or MPEG-1 Layer II on SDI Ports or Balanced Audio with Dual XLR Connectors. Dual CAM Modules. Can Decrypt 8 Services if used with 4 Service CAM Cards.

Standard Features:

Inputs:
- IP (100/1000 M), DVB-ASI with loopthrough, or DVB-S or DVB-S2 with loopthrough
Outputs:
- IP (UDP, RTP), HD-SDI, SDI, HDMI, Two DVB-ASI outputs, Two mirrored DVB-ASI outputs, YPrPb, or Two Composite outputs – one BNC, one RCA
Audio Outputs: Embedded AAC, MPEG-1 Layer II, YPbPr, Composite, Balanced XLR, Dolby Digital® AC-3 Passthrough
Web GUI Management
Built-in re-multiplexer
BISS 1 or BISS E decryption
Dynamic PMT detection and automatic update
VBI teletext, EBU/DVB subtitle support
WSS support
Closed Caption support
Unicast and Multicast support
Down converts HD input to SD out
2 CI slots support 4 service CAM modules each
Compatible with: Conax, Cryptoworks, Irdeto, NDS, Mediaguard, SECA, Viaccess and more
Supports PAL, NTSC, and SECAM
LCD front panel controls plus web-based management
Maximum IP output bit rate is 70 Mbps
Maximum 32 separate Unicast or Multicast IP out streams

Applications:

Off air DVB-T/DVB-T2 receiver
MPEG-2/4/H.264 HD Decoder
Transport Stream Decoder
IP or ASI re-multiplexing
Signal monitoring
IP to ASI and ASI to IP converter
