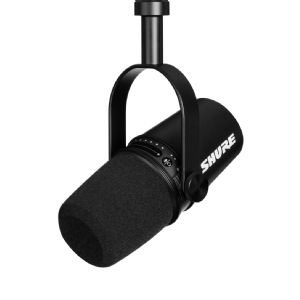

SHURE

MV7

מיקרופון שדרים עם יציאות XLR ו-USB, יציאת אוזניות מובנית ושליטה באמצעות משטח מגע על המיקרופון.

System Requirements

System Requirements and Compatibility: Mac

MacOS 10.13 to 10.15
64 bit
Minimum 2 GB of RAM
Minimum 500 MB of hard disk space

System Requirements and Compatibility: Windows

Windows 10
64 bit
Minimum 2 GB of RAM
Minimum 500 MB of hard disk space

System Requirements and Compatibility: iOS

iOS: iOS 12 and higher
iPhone: iPhone 6 and higher
iPod Touch: 6th gen

Note: iPad Pro (USB-C) is not supported.

System Requirements and Compatibility: Android

Will work with any Android device that has:

Android Oreo 8.0 and higher
USB Host Power Requirement of ≥100 mA
USB Audio Class 1.1 support and higher

Android is a trademark of Google Inc.

Note: See https://www.shure.com/MOTIVcompatibility for information on supportive Android devices.

Specifications

MFi Certified

Yes

DSP Modes (Presets)

Near/Far, Dark/Natural/Bright

Transducer Type

Dynamic (moving coil)

Polar Pattern

Unidirectional (Cardioid)

Output Impedance

314 Ω

Frequency Response

20 Hz to 20,000 Hz

Adjustable Gain Range

0 to +36 dB

Sensitivity

(@ 1 kHz, open circuit voltage)

-55 dBV/Pa ^[1] (1.78 mV), -47 dBFS/Pa ^{[1] [2]}

Maximum SPL, Digital Output

132 dB SPL ^[2]

Headphone Output

3.5 mm (1/8″)

Polarity

Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3

Mute Switch Attenuation

Yes

Limiter

Yes

Compressor

Yes

Power Requirements

Powered through USB or Lightning connector

Housing

All metal construction

Mounting Type

5/8-27 thread mount

Net Weight

0.55 kg (1.21 lbs)

^[1]1 Pa=94

dB SPL

^[2]

At Minimum Gain, Flat Mode

Bit Depth	Sampling Rate
24	48 kHz
24	44.1 kHz
16	48 kHz
16	44.1 kHz

Typical Frequency Response

Typical Polar Pattern

Overall Dimensions

קישור לאתר החברה

מדריך למשתמש

מיקרופון שדרים ופודקסטים XLR/USB
