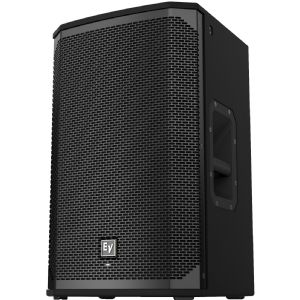

EKX-12P

12" powered loudspeaker

QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

Specifications

Frequency Response (-3 dB)	60 Hz - 18 kHz¹
Frequency Range (-10 dB)	50 Hz - 20 kHz¹
Maximum SPL	132 dB²

Coverage (H x V)	90" x 60"
Power Rating	1500 W
LF Transducer	EVS-12M 300 mm (12 in)
HF Transducer	DH-1M 1-inch titanium compression driver
Crossover Frequency	1.7 kHz
Connectors	(1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output
Enclosure	15 mm plywood with EVCoat
Grille	18 AWG steel with powdercoat
Suspension	(8) M10 threaded mounting points
Dimensions (H x W x D)	607 mm x 375 mm x 356 mm (24 in x 15 in x 14 in)
Net Weight	18.8 kg (41.4 lb)
Shipping Weight	22.9 kg (50.4 lb)
Power Consumption	1.8 A³

¹ Full space measurement using the music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
