מגבר אוזניות קומפקטי ארבע כניסות ושתי יציאות. כל כניס ניתן לנתב לצד ימין שמאל או לשניהם.

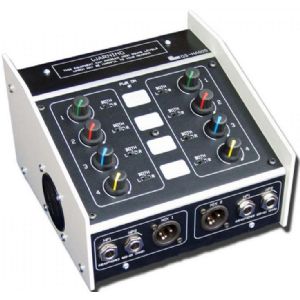

This robust battery powered twin headphone amplifier has been designed specifically for outside broadcast environments. It has 4 audio inputs (with loop through XLRs for connecting several units together) which are fed through 2 off 4 channel mixers the outputs of which have both a headphone amplifier and a balanced mix out.
Features
Powered from 2 x 'D' cells
External DC power input (12 - 18volts)
Size just 160 x 165 x 104 mm (W x D x H)
4 x audio inputs

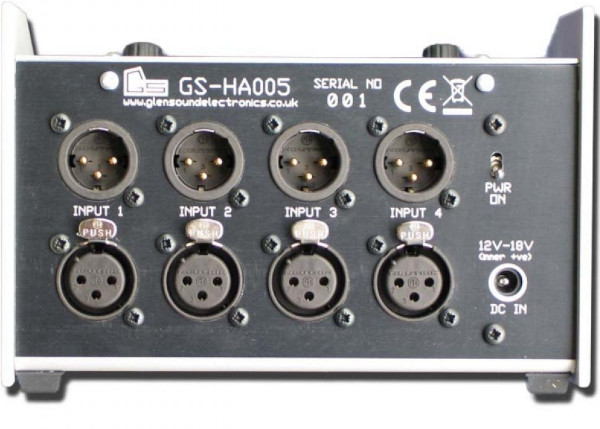

Loop through audio connectors
Transformer balanced inputs for reliability
2 x separate headphone mixes
Inputs can be switched to left/ right or both sides of the headphone amplifier
2 x headphone jack outputs for each amplifier
Headphone jacks are A/B gauge
Designed for 200 to 2kOhm headphone impedances
Can run lower impedance (80 Ohm headphones) with reduced battery life
2 x headphone jack outputs for each amplifier
Balanced mix outputs of the 2 x 4 channel mixers
Power on switch
2 x power indicating LEDs. 1 indicates power available from the external DC input and the other that power is available from the batteries.
