ממיר SUONDGRID/MADI

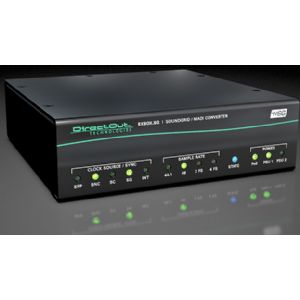

EXBOX.SG is a SoundGrid / MADI converter linking Waves' audio networking technology SoundGrid and MADI (AES10). Equipped with three MADI ports and four network ports it offers low latency conversion of 128 audio channels between SoundGrid and MADI.

The handy size of the popular EXBOX series (1/3 of 19’’), combined with the rock-solid housing and redundant power supplies, makes EXBOX.SG a perfect connectivity tool for mixing in OB vans or live sound environments, for recording sessions as well as studio applications integrating numerous Waves and third party plugins.

Overview

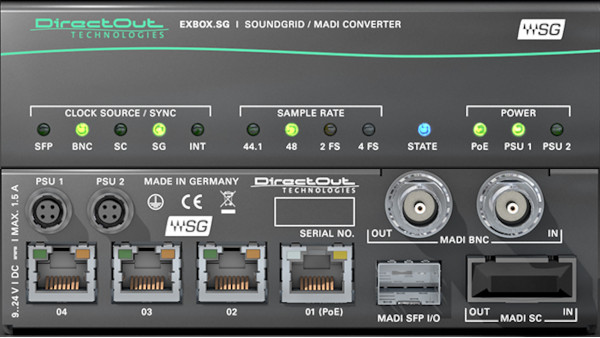

LEDs at the front panel inform about clocking, sample rate, device state and power supply at a glance.

Audio Streaming
Interfacing with up to 128 audio channels at 48 kHz or 64 audio channels at 96 kHz is supported.

All-round Functionality
EXBOX.SG offers highest flexibility as it provides three MADI ports of different interface types:

• optical SC (single-mode or multi-mode)
• coaxial (BNC)
• SFP

The Small Form Factor Pluggable cage can be fitted with any SFP module suitable for the particular application.

Built-in-switch
Four network ports can be used to connect directly to redundant recording systems and plugin servers without the need of an additional switch.

Remote Control
EXBOX.SG is managed by a Soundgrid device control panel and globcon control.

Safe Operation
The device can be powered by up to two external power-supplies with lockable plugs as well as PoE (Power over Ethernet).

Rack Ready
Each EXBOX can be mounted into a standard 19’’-rack by using the optional kit BOXMOUNT.XL. Up to three devices may fit side-by-side within 1 RU.

Remote control via Globcon a browser-based GUI
