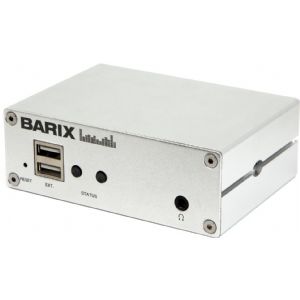

Exstreamer M400

הדור החדש של פורסי אודיו על גבי IP

The Exstreamer M400 feeds your PA and turns it into an extensive Audio over IP system. A wide variety of audio environments, such as SIP, InformaCast and Syn-Apps are supported. Codecs include PCM, AACplus, MP3, OPUS, G.711, G.722 that can be streamed using HTTP and RTP. Audio files can be stored on the internal memory and their playback can be triggered via a simple UDP command. Thanks to the priority handler, the Exstreamer M400 can be configured to switch between sources according to one of the five priority settings and therefore eliminates the need for an audio matrix device. The M400 is a solid metal device, compact and easily installed. It is connected to your amplifier, DSP or audio mixer via a stereo output on RCA connectors. The configuration of the device is done via the local web interface.

Operation System

Embedded Linux based on Yocto

Network Interfaces

1 x Ethernet (RJ45) Interface
IPv4, IPv6 capable
10/100 fdx/hdx, auto negotiation

Protocols

TCP/IP, UDP, RTP, SRTP SIP, SIPS, HTTP, HTTPS, DHCP, mDNS/DNS-SD (Avahi), NTP
Singlewire InformaCast compatibility – requires extra license
Syn-Apps Revolution compatibility

CPU / Memory

Barix IPAM400 Processor Module
Quad-Core ARM Cortex™ -A7
256MB DDR3 SDRAM
16MB SPI Flash
8GB SD-Card Flash

Audio Formats

MP3 CBR/VBR, up to 320 kbps, 8..48 kHz sample freq.
AAC-HE (AAC, AAC plus, AAC plus V2)
PCM linear 16bit @44.1 kHz
G.711
Opus, WAV, OGG Vorbis

RS-232 Interface

Serial Port

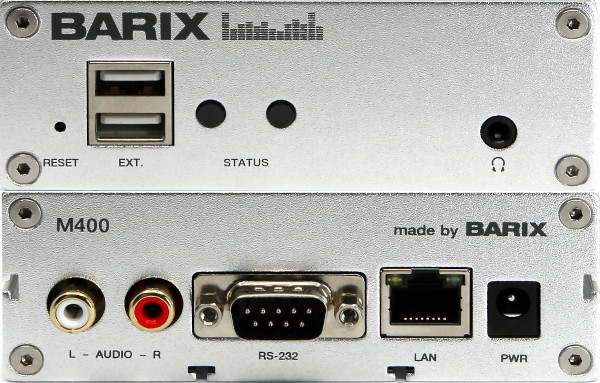

Audio Interface

unbalanced L-R Line level output on RCA connectors
Headphone connector on the front panel

User Interface

Web interface for configuration
2 x Multicolor LED Status indicators
Reset & Factory Defaults Button

Power Requirements

5VDC, 10W maximum on 5.5×2.1mm barrel connector (inner positive)

MTBF

> 200’000h

Measurement

108x38x78.7mm
4.25×1.5×3.1 inch

Weight

250g

Warranty

Two years
