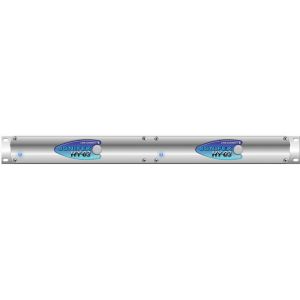

  Telephone Hybrid front.

Telephone Hybrid front.

Sonifex

HY-03T
The HY-03T is a twin automatic analogue TBU, 19" (48.3cm) rack-mount unit.

The analogue HY-03 telephone hybrid is the replacement for the HY-02, which for many years has set the standard as an excellent value, high quality telephone hybrid.

The HY-03 retains many of the features of the HY-02 and adds some additional ones. Some of the features of the HY-03 include :

  • Fully automatic - adapts to varyingline conditions and has automatic signal limiting.
  • Local and remote line hold switching - calls can be remotely switched through a mixing console.
  • Momentary or permanent latching remotes can be enabled.
  • Balanced mic/line input - 10k ohm balanced input selectable for 0dBu clean feed line, or microphone level with adjustable gain.
  • Balanced output - 0dBu low impedance balanced output, with output gain adjustment.
  • Mixed output - the output can be a mix of the caller and mic/line input signals for recording both sides of the telephone conversation.
  • Integrated ring detector - automatic call answering after a pre-determined number of rings.
  • Fitted with K-break disconnect detection as standard with an option for dial-tone disconnect using the optional HY-03DTD board. The HY-03DTD board can be configured to disconnect on recognizing the dial tone used in a specific country.
  • Line limiter, bandpass filter and output noise gate with preset threshold providing low distortion crystal clear audio.
  • 28dB typical line balance rejection.
  • Built in power supply with switchable 115V, or 230V, mains input.
  • BABT approval compliant with European PTT specifications.


קישור לאתר החברה

קטלוג המוצר
מחיר קטלוגי: 9328 ₪ (10914 ₪ כולל מע"מ)
צור קשר לקבלת הצעת מחיר
