  Digital Mic prossesor

Digital Mic prossesor

WHEATSTONE

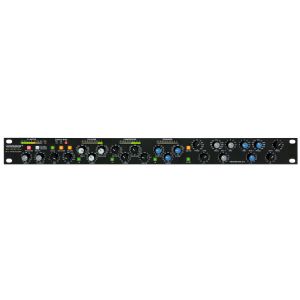

M-1
The Vorsis M-1 is a flexible and easy to use digital Microphone processor. It offers unlimited presets, security, networkability, an all digital framework, and easy to set up parameters. Either from the front panel, or from the GUI - all parameters of the M1 can be controlled to give each voice talent his or her own personal sound at the press of a button. From one GUI an entire facility’s group of M1's can be controlled, making multiple microphone processor management easy. The features on the M-1 include a 4 band parametric EQ, high and low pass filters, de-esser and expander and of course, our proprietary Vorsis dynamics processing. The unit comes loaded with factory designed presets, and designing your own is easy - thanks to features such as "Quick save" and quick compare - allowing you to toggle back and forth between different presets as you adjust them.

  • Control of all audio parameters
  • Intuitive PC graphical user interface (GUI)
  • High quality, low noise microphone preamp
  • Phantom power
  • Metering: In/Out, De-esser, Compression, Expansion
  • Password based security
  • 44.1, 48 or 96 kHz AES3 output sample rates
  • 24-bit A/D, D/A converters
  • Preset storage/recall via GUI
  •  Variable frequency De-esser
  • Voice phase scrambler
  • Adjustable compression
  • Downward expansion
  • Output limiter
  • EQ: two-band parametric plus variable high and low shelving
  • Tunable high and low pass filters
  • FFT voice energy display via GUI
  • Quick save/compare function
  • TCP/IP Ethernet remote control
  • Takes up only one rack space

Recommended Applications:

  • AM Analog
  • FM Analog
  • FM HD
  • AM HD
  • Television
  • Webcasting
  • Podcasting
  • Mastering & Production
  • Live Sound
