  8x8 Composite Video Matrix Switcher

8x8 Composite Video Matrix Switcher

Kramer Electronics

vs-88v

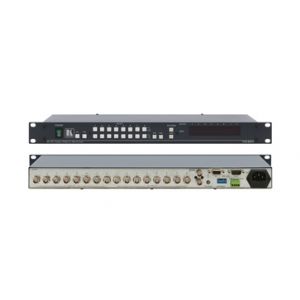

The VS-88V is a high-performance matrix switcher for composite video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources

  • Bandwidth 200MHz (-3dB) fully loaded.
  • Control Front panel, RS-232 (K-Router™ Windows®-based Kramer software is included), & RS-485.
  • Take Button Executes multiple switches all at once.
  • Memory Locations Stores multiple switches as presets to be recalled and executed when needed.
  • Vertical Interval Switching.
  • Switching Synchronization Synchronizes either to external reference or the incoming video.
  • Looping Sync Input.
  • Selectable Sync Signal Termination.
  • Worldwide Power Supply 100-240V AC.
  • Standard 19” Rack Mount Size 1U.
