כרטיס קול פנימי PCIe

Specs

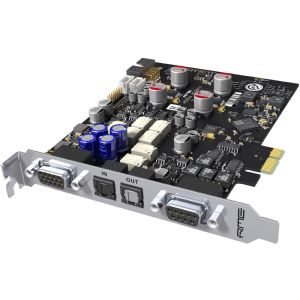

HDSPe AIO Pro

Analog Inputs

RCA (Standard D-Sub Breakout cable)

• Input: Cinch (RCA), unbalanced
• Input impedance: 18 kOhm
• Input sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
• Signal to Noise ratio (SNR) @ +19/24 dBu: 117 dB RMS unweighted, 120 dBA
• Signal to Noise ratio (SNR) @ +13 dBu: 116 dB RMSu nweighted, 118 dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 112 dB RMSu nweighted, 114 dBA
• Frequency response @ 44,1 kHz, -0,1 dB: 7 Hz – 20.5 kHz
• Frequency response @ 96 kHz, -0,5 dB: 3 Hz – 45,5 kHz
• Frequency response @ 192 kHz, -1 dB: 2 Hz – 92 kHz
• THD @ -1 dBFS: -114 dB, 0,0002 %
• THD+N @ -1 dBFS: -110 dB, 0,0003 %
• Channel separation: > 110 dB

XLR (optional D-Sub Breakout cable)
as RCA, except:

• Input: XLR, servo-balanced
• Input impedance balanced: 36 kOhm, unbalanced: 18 kOhm
• Signal to Noise ratio(SNR) @ +4 dBu: 116 dB RMS unweighted, 118 dBA

Analog Outputs

RCA (Standard D-Sub Breakout cable)

• Output: Cinch (RCA), unbalanced
• Output impedance+19/+13 dBu: 75 Ohm. +4/-2 dBu: 80 Ohm
• Output impedance switchable +19, +13 dBu, +4 dBu, -2 dBu @ 0 dBFS
• Signal to Noise ratio (SNR) @ +19 dBu: 117 dB RMS unweighted, 119 dBA
• Signal to Noise ratio (SNR) @ +13 dBu: 116 dB RMS unweighted, 118 dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 114 dB RMS unweighted, 116 dBA
• Signal to Noise ratio (SNR) @ -2 dBu: 110 dB RMS unweighted, 112 dBA
• Frequency response @ 44.1 kHz, -0,1 dB: 10 Hz – 20,2 kHz
• Frequency response @ 96 kHz, -0,5 dB: 4 Hz – 44,6 kHz
• Frequency response @ 192 kHz, -1 dB: 3 Hz – 83 kHz
• THD @ 0 dBFS: < -107 dB, 0,0005 %
• THD+N @ 0 dBFS: -105 dB, 0,0006 %
• Channel separation: > 110 dB

XLR (optionales D-Sub Breakout cable)
as RCA, except:

• Output: XLR
• Output impedance +24/+19 dBu: 150 Ohm, +13/+4 dBu: 160 Ohm
• Output level switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
• Signal to Noise ratio (SNR) @ +24 dBu: 117 dB RMS unweighted, 120 dBA

Phones
as RCA, except:

• Output: 6.3 mm TRS jack, unbalanced, stereo
• Output impedance: 0.1 Ohm
• Signal to Noise ratio (SNR) @ +19 dBu (Hi-Power): 117 dB RMS unweighted, 119 dBA
• Signal to Noise ratio (SNR) @ +7 dBu (Lo-Power): 113 dB RMS unweighted, 115 dBA
• Output level at 0 dBFS, Hi-Power, load 150 Ohm or up: +19 dBu (6.9 V)
• Output level at 0 dBFS, Lo-Power, load 16 Ohm or up: +7 dBu (1.73 V)
• THD+N @ + 15 dBu, 32 Ohm load, 590 mW: -97 dB, 0.0016 %
• Max power @ 0.1% THD 32 Ohm: 730 mW per channel

Digital Inputs

AES/EBU

• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• High-sensitivity input stage (< 0,3 Vss)
• SPDIF compatible (IEC 60958)
• Accepts Consumer and Professional format, copy protection will be ignored
• Lock Range: 28 kHz – 200 kHz

SPDIF

• 1 x RCA, transformer-balanced, according to IEC 60958
• High-sensitivity input stage (< 0,3 Vss)
• AES/EBU compatible (AES3-1992)
• Accepts Consumer and Professional format, copy protection will be ignored
• Lock Range: 28 kHz – 200 kHz

ADAT Optical

• 1 x TOSLINK, format according to Alesis specification
• Standard: 8 channels 24 bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz
• Bitclock PLL ensures perfect synchronisation even in varispeed operation
• Lock range: 31.5 kHz – 50 kHz

Digital Outputs

AES/EBU

• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• Output level 4,0 Vss
• Format Professional according to AES3-1992 Amendment 4
• Single Wire mode, sample rate 28 kHz up to 200 kHz

SPDIF

• 1 x RCA, transformer-balanced, according to IEC 60958
• Output level Professional 2.3 Vpp, Consumer 1.0 Vpp
• Format Professional according to AES3-1992 Amendment 4
• Format Consumer SPDIF according to IEC 60958
• Single Wire mode, sample rate 28 kHz up to 200 kHz

ADAT

• 1 x TOSLINK, format according to Alesis specification
• Standard: 8 channels 24 bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz

Digital

• Clocks: Intern, ADAT In, SPDIF In, Sync In, optional Word clock In / LTC in
• Jitter suppression of external clocks: > 50 dB (2,4 kHz)
• Effective clock jitter influence on AD and DA conversion: near zero
• PLL ensures zero dropout, even at more than 100 ns jitter
• Digital Bitclock PLL for trouble-free varispeed ADAT operation
• Supported sample rates: 28 kHz up to 200 kHz

MIDI

• 1 x MIDI I/O via 5-pin DIN jacks
• Galvanically isolated by optocoupled input
• Hi-speed mode: Jitter and response time typically below 1 ms
• Separate 128 byte FIFOs for input and output
